The company has a strong technical force in stone machinery manufacturing, rich experience in stone machinery manufacturing for 30 years, and has a unique and efficient R&D team.

Home>Our Products>Main Series

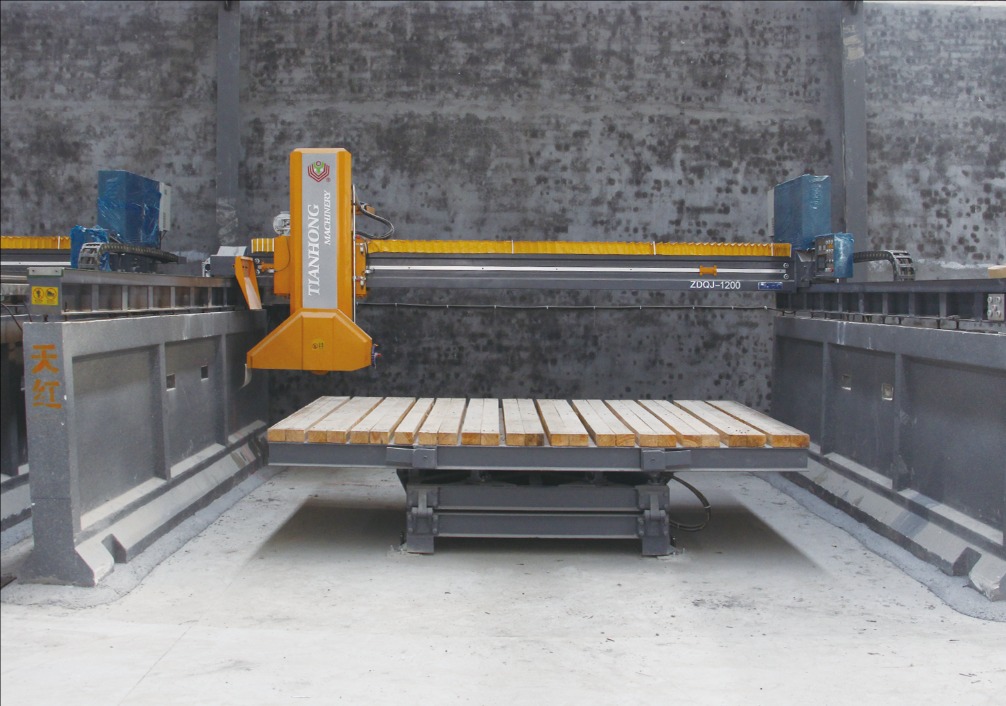

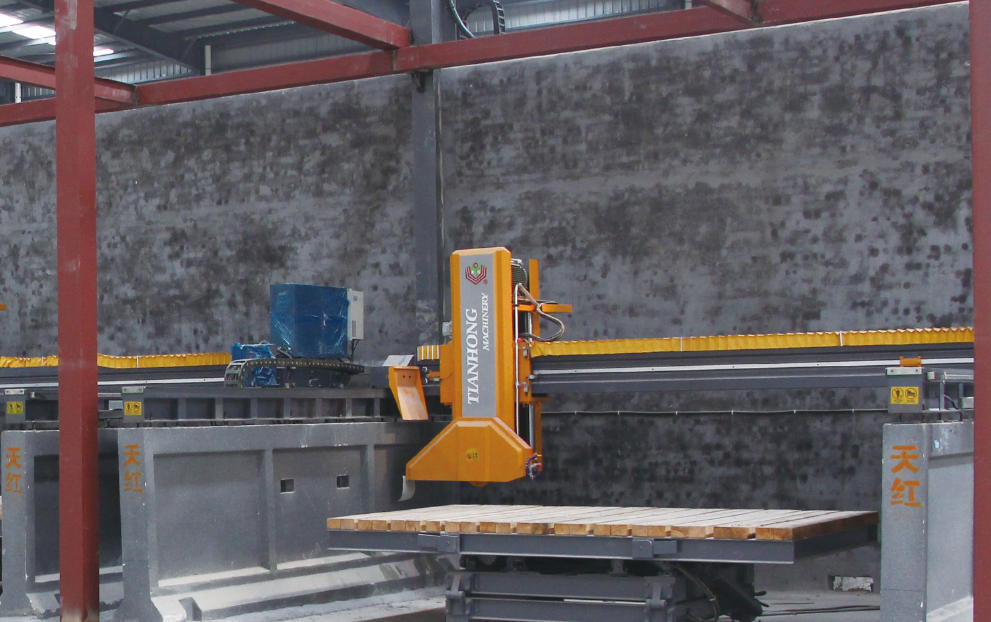

ZDQJ-1200 BRIDGE STONE CUTTING MACHINE 4 GUIDE PILLAR HEAVY TYPE
Technical Parameters
Max. diameter of saw blade Φ1200/Φ1400/Φ1600mm
Max. lifting stroke 750mm
Worktable size 3000×2000mm
Worktable rotation range 0°, 90° 0°~360°（每45°一个定位）
Max. processing height of workpiece 450/550/650mm
Water consumption 5m³/h
Motor power 22~30kw
Dimensions 6200×4800×4200/4400/4600mm
Weight 7200/7400/7600kg
