The company has a strong technical force in stone machinery manufacturing, rich experience in stone machinery manufacturing for 30 years, and has a unique and efficient R&D team.

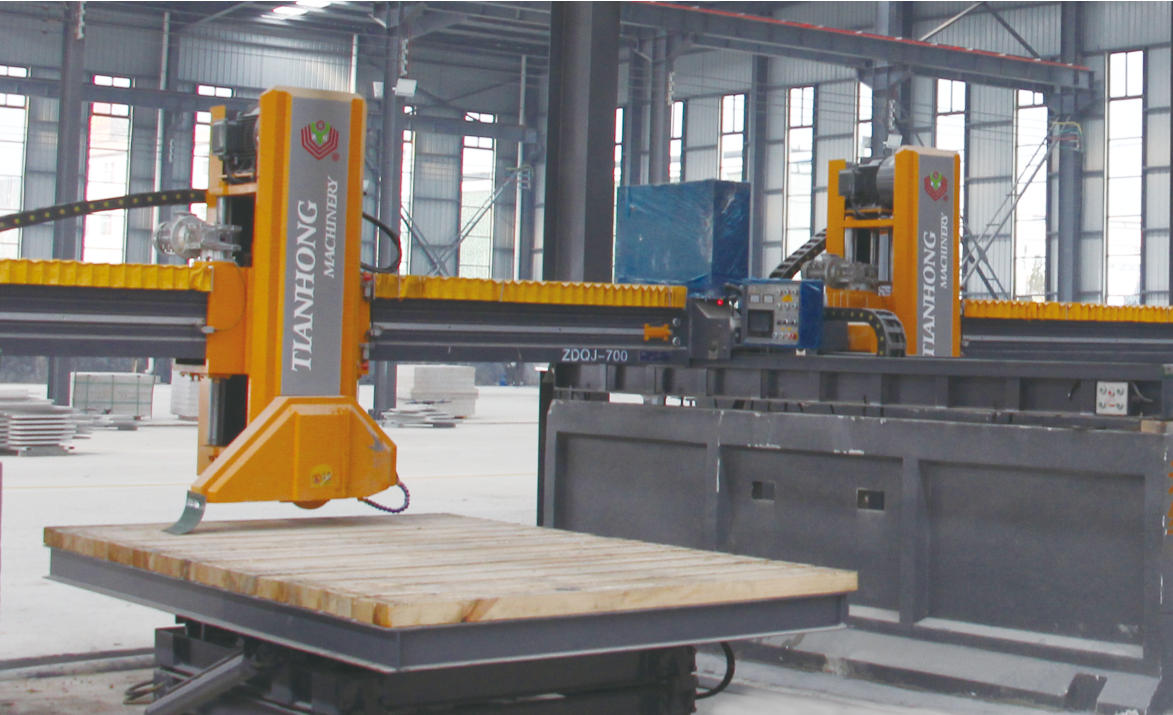

ZDQJ-450/600/700 CNC BRIDGE STONE CUTTING MACHINE
Product Introduction
The Tianhong CNC infrared bridge stone cutting machine achieves intelligent control and adopts high market configuration. The AI circuit system uses imported spare parts and a cross shaped I-beam bracket. The worktable is made of 5MM iron plate with a wooden frame to prevent deformation and water leakage. The bottom adopts 6-wheel drive, and the overall configuration is much higher than that of similar products in the market. It has the advantages of high precision, high efficiency, and high stability, especially in thick plate cutting, which cannot be compared with other products and has become the preferred product trusted by customers.
Technical Parameters
Technical Parameters ZDQJ-450 ZDQJ-600 ZDQJ-700
Max. diameter of saw blade 450mm 600mm 700mm
Max. lifting stroke 220mm 350mm 470mm
Worktable size 3200×2000mm 3200×2000mm 3200×2000mm
Worktable rotation range 0°, 90° 0°~360°(每45°一个定位) 0°, 90° 0°~360°(每45°一个定位) 0°, 90° 0°~360°(每45°一个定位)
Worktable turn-over degree 85° 85° 85°
Max. processing height of workpiece 100mm 180mm 230mm
Water consumption 3m³/h 3m³/h 3m³/h
Motor power 15kw 18.5kw 22kw
Dimensions 6000×4800×3000mm 6000×4800×3200mm 6000×4800×3400mm
Weight 5700kg(含钢架6500kg) 5800kg(含钢架6600kg) 5900kg(含钢架6700kg)

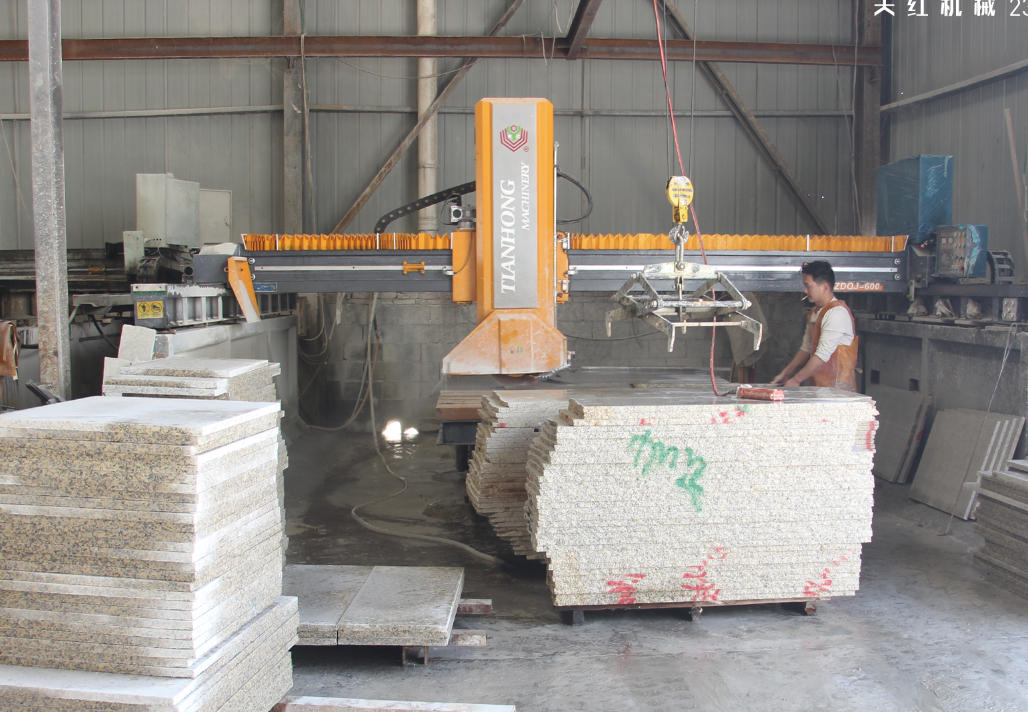

Case Application
